Description

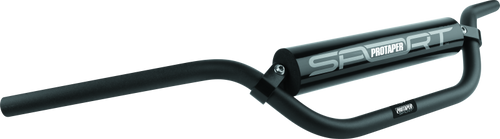

Aerospace-grade 6061-T6 aluminum with a shot-peened finish for increased durability. 5 mm wall thickness for maximum strength.
- 7/8 in. overall diameter
Handlebar Bend Chart
| BEND | WIDTH | HEIGHT | RISE | CLAMP AREA | SWEEP | CONTROL AREA | PART LINK |
|---|---|---|---|---|---|---|---|
| Carmichael | 800mm | 73mm | 36mm | 195mm | 55mm | 210mm | [view part] |
| Henry / Reed | 800mm | 92mm | 61mm | 206mm | 57mm | 182mm | [view part] |
| Windham / RM Mid | 800mm | 99mm | 70mm | 219mm | 53mm | 180mm | [view part] |
| CR High | 800mm | 95mm | 67mm | 204mm | 60mm | 180mm | [view part] |
| YZ High | 800mm | 84mm | 53mm | 202mm | 52mm | 190mm | [view part] |
| SX Race | 800mm | 87mm | 54.5mm | 216mm | 54mm | 195mm | [view part] |
| Race Team | 810mm | 90mm | 49mm | 188mm | 52mm | 195mm | [view part] |
| MX Race | 812mm | 78mm | 40mm | 205mm | 53mm | 210mm | [view part] |
